Impact of Valve Wafer Type on System Pressure Drop

In the complex world of fluid control systems, efficiency is paramount. Every component, especially valves, plays a critical role in determining the overall energy consumption and operational cost of a system. A key factor influencing this efficiency is pressure drop – the reduction in fluid pressure as it flows through a restriction. Among valve designs, the valve wafer type has gained significant popularity due to its compactness and cost-effectiveness. However, the specific design and type of wafer valve significantly impact the resulting pressure drop, directly affecting system performance. Understanding this relationship is crucial for engineers and system designers aiming to optimize fluid networks for industries ranging from water supply to petrochemicals.

Ningjin Hongda Valve Co., Ltd., as a professional valve supplier integrating design, research, production, manufacturing, sales, and service, leverages its specialized production lines in casting, machining, and assembly to deliver high-performance valves. Their comprehensive product range includes various valve wafer type designs, particularly elastic soft-sealed butterfly valves and check valves, alongside other series and supporting devices. Utilizing high-quality gray cast iron and ductile iron valve castings, and offering personalized solutions, Ningjin Hongda valves are engineered for demanding applications in water supply, drainage, sewage treatment, power stations, petrochemicals, oil/gas pipelines, and shipbuilding. With a global sales network spanning five continents, particularly strong in European and American markets, their expertise in manufacturing robust, efficient valves is well-established.

Understanding Valve Wafer Type Design and Pressure Drop Fundamentals

The fundamental principle governing pressure drop across any valve is the disruption of smooth fluid flow. Turbulence, changes in flow direction, and sudden constrictions or expansions at the valve inlet/outlet all contribute to energy loss, manifesting as a pressure drop. Valve wafer type designs are characterized by their slim profile, sandwiched between two pipeline flanges without requiring nuts on both sides (unlike lug-type valves). While inherently compact, different internal designs within the wafer category lead to vastly different flow paths.

The primary advantage of wafer valves is their space and weight savings. However, this compactness can sometimes present challenges for achieving optimal, low-turbulence flow paths compared to longer body valves like certain gate or globe designs. The key lies in the internal geometry: the shape of the disc, the design of the seat, and the unobstructed flow area when the valve is fully open. A well-designed valve wafer type minimizes flow restrictions and smooths the transition of fluid, thereby minimizing pressure drop. Materials also play a role; smoother internal finishes reduce frictional losses. Ningjin Hongda's focus on specialized casting and machining ensures precise internal geometries and surface finishes critical for flow efficiency.

Optimizing Flow with Wafer Type Check Valve Designs

Wafer type check valve are a critical subcategory designed specifically to prevent backflow with minimal pressure drop in the forward flow direction. Their wafer design makes them ideal for space-constrained installations. The pressure drop across a wafer type check valve is heavily influenced by the disc design and the mechanism controlling its movement.

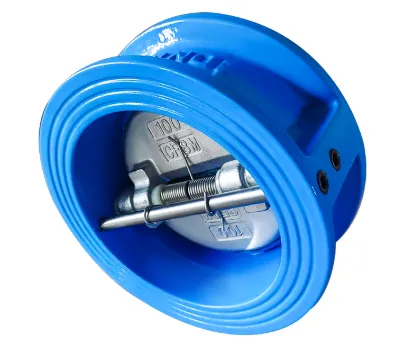

Traditional swing check valves, even in wafer form, can have relatively high pressure drops due to the disc swinging into the flow path and requiring significant flow energy to open fully. More efficient designs, like the dual-plate or double-door check valves (often referred to as duo check valve), offer significant advantages. These utilize two spring-assisted semi-circular discs hinged on a central pin. The discs open smoothly with minimal flow resistance and close rapidly upon flow reversal. The central positioning and streamlined disc shape create a more linear flow path compared to a swinging disc, drastically reducing turbulence and pressure loss. Ningjin Hongda's wafer type check valve portfolio includes these advanced duo check valve designs, engineered for low head loss. For instance, their wafer check valves are designed to comply with API 594 standards, adopting the efficient dual plate design for reliable sealing and low pressure drop. Valve inspection and testing rigorously comply with API 598 to ensure performance integrity.

Material and Design Specifications for Valve Wafer Type

Selecting the right materials and adhering to precise design standards are crucial for minimizing pressure drop and ensuring longevity. Ningjin Hongda utilizes high-grade materials throughout their valve wafer type products to achieve smooth flow characteristics and durability.

The table below outlines typical material specifications for key components in Ningjin Hongda's wafer butterfly and wafer check valves (including wafer type check valve and duo check valve), directly impacting flow efficiency and pressure drop:

Smooth body castings (Ductile Iron QT450-10 offers excellent strength and machinability) minimize internal roughness. The disc material (often nickel-plated ductile iron or stainless steel like CF8/CF8M) and its precise contour are critical; a streamlined disc profile reduces drag. High-quality seat materials (NBR, EPDM, Viton) ensure tight sealing without requiring excessive disc protrusion into the flow path when open. In duo check valve designs, the spring material (Type 304/316 SS) is vital – it must be strong enough to ensure rapid closure but light enough to allow the discs to open fully with minimal pressure, contributing directly to lower pressure drop. Ningjin Hongda offers these valves in pressure ratings like Series F16 and Series F125, with the Series F16 wafer type check valve specifically designed to be compatible with GB, DIN, and BS flanges. Face-to-face dimensions adhere to ISO 5752 basic series 16 (wafer long) standards, ensuring interchangeability and predictable installation effects on system layout.

FAQs About Valve Wafer Type and Pressure Drop

What is the primary advantage of using a valve wafer type design regarding system pressure?

The primary advantage of a valve wafer type design is its compactness, leading to lighter weight and lower cost. However, a well-engineered valve wafer type can achieve a flow path design that minimizes obstruction, resulting in a relatively low pressure drop compared to its size, especially in fully open positions like with butterfly valves or efficient check valves.

How does a wafer type check valve minimize pressure drop compared to other check valve styles?

A wafer type check valve, particularly the duo check valve (dual plate) design, minimizes pressure drop by utilizing two spring-assisted, lightweight discs that open fully with the flow, creating a near-straight, unobstructed central flow path. This streamlined design generates significantly less turbulence and resistance than swing check valves, where the disc swings across the flow, or lift check valves, which have a perpendicular disc movement.

What specific features of a duo check valve contribute to low pressure loss?

Key features of a duo check valve that ensure low pressure loss include its dual, lightweight, semi-circular discs; a central hinge pin allowing discs to fold open completely into the flow stream; strong yet lightweight stainless steel springs that facilitate full opening; and a body design that contours closely around the open discs, minimizing flow separation and turbulence.

Are there material choices within the valve wafer type that can further influence pressure drop?

Yes, material choices impact pressure drop. Smoother internal body surfaces (achieved through precise casting and machining of materials like ductile iron QT450-10) reduce frictional losses. Streamlined disc profiles (in stainless steel or nickel-plated ductile iron) minimize drag. The quality of the seat material also influences how completely the disc retracts from the flow path when open.

Can the pressure rating of a wafer type check valve affect its pressure drop characteristics?

While the pressure rating (e.g., Series F16, F125) primarily defines the valve's strength to contain internal pressure, it often correlates with body wall thickness and potentially the robustness of internal components like the disc or hinge pin. Generally, a valve designed for a higher pressure rating (F125) might have slightly thicker walls or reinforcements, which could marginally reduce the flow area compared to its lower-pressure counterpart (F16), potentially leading to a very slight increase in pressure drop. However, a well-designed valve minimizes this difference. Ningjin Hongda's Series F16 wafer type check valve is widely compatible and optimized for standard applications.

The selection of the appropriate valve wafer type has a profound and measurable impact on system pressure drop, directly influencing energy consumption, pump sizing, and operational costs. While wafer designs offer inherent advantages in compactness and cost, internal geometry is paramount. Wafer type check valve, especially the efficient duo check valve design with its dual spring-assisted discs, offer significantly lower pressure drops compared to traditional styles by providing a streamlined, near-full-bore flow path when open. Ningjin Hongda Valve Co., Ltd. leverages its integrated manufacturing capabilities – from high-quality cast iron and ductile iron castings to precision machining – to produce a range of optimized valve wafer type solutions, including high-performance wafer type check valve and duo check valve. By carefully selecting materials, adhering to stringent standards like API 594 and API 598, and offering configurations like Series F16 and F125, they ensure their valves deliver minimal pressure loss alongside reliability and longevity in diverse global applications, from municipal water systems to critical industrial processes. Understanding the specific pressure drop characteristics of different wafer valve types is essential for designing efficient and cost-effective fluid handling systems.
