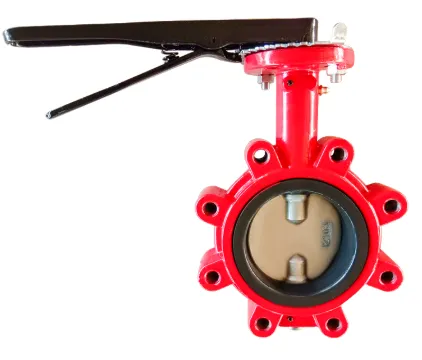

The Role of Cast Iron Butterfly Valves in Chemical Processing

The chemical processing industry operates under some of the most demanding conditions imaginable. Handling aggressive fluids, corrosive chemicals, high pressures, and extreme temperatures requires robust, reliable, and precisely engineered components. Among the most critical elements within these complex systems are the valves that control flow, isolate sections, and ensure operational safety. Here, cast iron butterfly valves have carved out a significant niche, offering a compelling combination of durability, performance, and cost-effectiveness. Companies like Ningjin Hongda Valve Co., Ltd., with their specialized expertise in valve design and manufacturing, are pivotal in supplying the high-quality fluid control solutions this sector demands.

Ningjin Hongda Valve Co., Ltd. stands as a professional valve supplier integrating comprehensive capabilities from design and research through production, manufacturing, sales, and service. Operating specialized production lines for casting, machining, and assembly, and backed by dedicated production technology and sales service teams, they deliver a wide range of valve solutions. Their product portfolio encompasses various types of elastic soft-sealed butterfly valves, check valves, and other series, along with supporting devices. Crucially, they are proficient in providing high-quality gray cast iron and ductile iron valve castings, forming the foundation of their robust butterfly valve offerings. Understanding that one size rarely fits all in industrial applications, Ningjin Hongda emphasizes personalization, tailoring products to meet specific customer requirements. Their valves find extensive application across critical sectors including water supply, drainage, sewage treatment, power stations, petrochemical industry, long-distance pipelines, and shipbuilding, with a global sales network particularly strong in European and American markets.

Operational Advantages of Cast Iron Butterfly Valves in Chemical Systems

The inherent properties of cast iron butterfly valves, particularly those utilizing ductile iron, make them exceptionally well-suited for numerous chemical processing applications. Key advantages include:

• Corrosion Resistance:While not suitable for the most highly corrosive streams without specific linings or coatings, gray cast iron and especially ductile iron offer good resistance to a wide range of chemicals encountered in milder to moderately aggressive environments, such as certain acids, alkalis, and solvents, particularly when protected by appropriate linings like PTFE or EPDM on the seat and disc.
•
• Strength and Durability:Ductile iron provides excellent tensile strength and impact resistance, comparable to some grades of steel. This inherent toughness allows cast iron butterfly valves to withstand the pressures, potential water hammer, and mechanical stresses common in chemical plants. Ningjin Hongda further enhances this by designing their valve bodies as one piece bodies that are ribbed to assure high strength and minimum weight, optimizing structural integrity without unnecessary bulk.
•
• Cost-Effectiveness:Compared to valves made entirely from exotic alloys like stainless steel or Hastelloy, cast iron butterfly valves offer a significantly lower initial investment. This makes them an economically attractive solution for large-scale installations or applications where the chemical compatibility of cast iron is sufficient.
•
• Bubble-Tight Shut-off:Modern soft-seated (elastic sealed) butterfly valves, like those produced by Ningjin Hongda, utilize high-performance elastomers (NBR, EPDM, Viton) or polymers (PTFE) for the seat. This design achieves excellent bubble-tight shut-off, critical for preventing leaks of hazardous or valuable chemicals, ensuring process integrity, safety, and environmental compliance.
•
• Ease of Operation and Maintenance:The quarter-turn operation of butterfly valves allows for quick opening and closing. Their compact, lightweight design (especially compared to gate or globe valves) simplifies installation, reduces space requirements, and makes maintenance procedures like seat replacement more straightforward.

Material Selection: Butterfly Valve Cast Iron vs. Carbon Steel Butterfly Valve

Choosing the optimal valve material is paramount in chemical processing. The decision between butterfly valve cast iron (gray or ductile) and carbon steel butterfly valve hinges on the specific service conditions:

Butterfly Valve Cast Iron: As discussed, gray cast iron offers good machinability and damping properties, while ductile iron provides superior strength and toughness. Both exhibit good resistance to corrosion in many alkaline solutions, certain acids, and neutral/slightly acidic water streams. Their cost advantage is significant. They are often the preferred choice for:

• Cooling water systems
• Process water lines
• Mild chemical solutions
• Wastewater handling within the plant
• Applications involving hydrocarbons where corrosion rates are manageable.
• Lower-pressure steam or air lines.

Carbon Steel Butterfly Valve: Carbon steel offers higher tensile strength and better resistance to higher temperatures and pressures than standard cast iron. However, its susceptibility to corrosion, especially from acids, oxygenated water, and many chemicals, is a major drawback. Carbon steel valves typically require protective coatings or linings for corrosion resistance in chemical service. They are often selected for:

• Higher pressure/temperature applications within the limits of the seat material.
• Non-corrosive fluids like fuel gas, oil, or high-purity water (with proper passivation).
• Applications where mechanical strength is the paramount concern and corrosion can be adequately mitigated.

FAQs About Our Cast Iron Butterfly Valves in Chemical Service

What are the primary advantages of using a cast iron butterfly valve in chemical plants?

The main advantages include good corrosion resistance for many common chemicals (especially with appropriate seat/disc materials), high strength and durability particularly with ductile iron, significant cost-effectiveness compared to exotic alloys, reliable bubble-tight shut-off with soft seats, compact design, and ease of operation and maintenance.

When should I choose a butterfly valve cast iron body over a carbon steel butterfly valve?

Choose a butterfly valve cast iron body (especially ductile iron) for applications involving mild to moderately corrosive chemicals, water, wastewater, or hydrocarbons where cost is a major factor and the pressure/temperature is within cast iron's capabilities. Opt for a carbon steel butterfly valve primarily when higher mechanical strength or pressure/temperature ratings are strictly required for non-corrosive or adequately protected services, or where specific industry standards mandate carbon steel.

What seat materials are recommended for cast iron butterfly valves handling corrosive chemicals?

For highly corrosive chemicals, PTFE (Teflon) or PTFE-lined seats offer exceptional chemical resistance across a very broad spectrum.The specific chemical, concentration, temperature, and pressure must always be reviewed to select the optimal seat material.

Can cast iron butterfly valves handle high temperatures?

Cast iron butterfly valves have operational temperature limits defined by both the body material and the seat elastomer/polymer.

Are your ductile Cast iron butterfly valves suitable for potable water or food processing?

Standard ductile iron butterfly valves are generally suitable for industrial water and wastewater. For potable water or food/beverage applications, specific certifications (like NSF/ANSI 61) and often specialized internal coatings or linings (e.g., FDA-approved epoxy) are required on the cast iron body to prevent contamination and meet health regulations. These requirements should be specified when ordering.

In the intricate and demanding world of chemical processing, selecting the right valve technology is critical for safety, efficiency, and cost management. Cast iron butterfly valves, particularly those manufactured with the expertise and quality control of companies like Ningjin Hongda Valve Co., Ltd., provide a robust and reliable solution for a wide array of applications. Leveraging the inherent strength and corrosion resistance of ductile iron, combined with advanced soft-seat technology and precision engineering (including features like one piece bodies that are ribbed to assure high strength and minimum weight), these valves offer an optimal balance of performance, longevity, and value. Understanding the nuanced differences between materials like butterfly valve cast iron and carbon steel butterfly valve allows engineers to make informed decisions tailored to specific process requirements. For flow control needs ranging from cooling water and process streams to wastewater and mild chemical handling, high-quality cast iron butterfly valves remain an indispensable component in the chemical engineer's toolkit.
