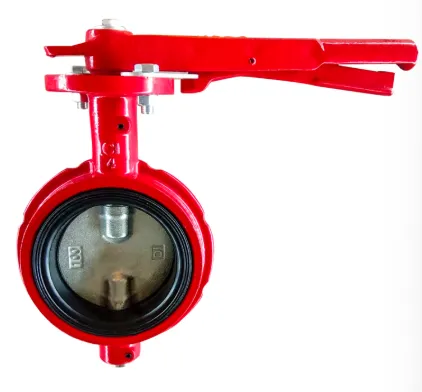

How to Install a Red Butterfly Valve Correctly for Optimal Performance

Proper installation is paramount for any industrial valve to deliver reliable, long-lasting, and efficient service. This is especially true for critical components like the red butterfly valve, a highly visible and commonly specified valve type in numerous demanding applications. As a leading manufacturer with a global footprint, Ningjin Hongda Valve Co., Ltd. understands that the performance of our valves – whether it's a standard red butterfly valve, a high-seal integrity PTFE butterfly valve, or a corrosion-resistant stainless butterfly valve – hinges significantly on correct field installation. With specialized production lines encompassing casting, machining, and assembly, and a dedicated team focused on production technology and sales service, we supply high-quality valves used worldwide in water supply, drainage, sewage treatment, power stations, petrochemical plants, pipelines, and shipbuilding. Our commitment extends to providing personalized solutions, including high-quality cast iron and ductile iron castings, ensuring the valve you install meets your precise system requirements.

This guide details the essential steps for correctly installing butterfly valves, focusing on best practices that ensure optimal performance and longevity.

Understanding Pre-Installation Essentials for Your Red Butterfly Valve

Before physically handling the valve, thorough preparation is crucial:

• Valve Inspection:Upon receiving your red butterfly valve, PTFE butterfly valve, or stainless butterfly valve, inspect it carefully. Check the nameplate against the purchase order and specifications. Examine the valve body, disc, and stem for any visible damage incurred during shipping. Ensure protective end caps or covers are intact. Verify the disc operates freely through its full 90-degree travel. For PTFE butterfly valve models, pay particular attention to the integrity of the seat area.
•
• Pipeline Preparation:The pipeline must be clean, free of welding slag, scale, dirt, and other debris that could damage the valve seat or disc upon opening. Flush the line thoroughly upstream and downstream of the planned installation point. Ensure pipe ends are clean, smooth, and aligned correctly. Misalignment forces transferred to the valve body are a common cause of premature failure.
•
• Material Compatibility Check:Confirm the valve materials are compatible with the fluid media, temperature range, and pressure conditions. Refer to the valve's material specifications. For instance, a stainless butterfly valve (ASTM A351 CF8M / 316 equivalent) is essential for corrosive media or high-purity applications, while a PTFE butterfly valve seat offers superior chemical resistance and tight shut-off. Review the provided material table:
•

Key Installation Steps for Secure and Leak-Free Operation about Red Butterfly Valve

• Positioning and Alignment:Position the valve between the pipeline flanges. For lug-style valves, ensure the lugs align correctly with the bolt holes. For wafer valves, ensure the valve is centered. The disc must be in the partially open position (approximately 10-15 degrees) during installation. Never install a butterfly valve with the disc fully closed, as this makes alignment impossible and risks severe damage to the seat and disc when the flanges are tightened. Use alignment pins or bolts to gently guide the flanges together without forcing the valve.
•
• Inserting Bolts and Hand-Tightening:Insert all flange bolts or studs. Hand-tighten the nuts evenly in a criss-cross or star pattern. This ensures the valve body is drawn evenly into place between the flanges without cocking or misalignment. Avoid using impact tools at this stage.
•
• Final Tightening:Using a calibrated torque wrench, tighten the flange bolts/nuts incrementally and evenly, continuing the criss-cross pattern. Follow the recommended torque values provided in the valve installation manual or based on flange and gasket specifications. Under-tightening can cause leaks; over-tightening can distort the valve body, damage the seat, or crush the gasket. Tighten in at least three stages.
•
• Actuator Mounting (If Applicable):If the valve is equipped with or will be equipped with a manual gearbox, pneumatic actuator, or electric actuator, mount it according to the actuator manufacturer's instructions. Ensure the actuator mounting bracket is secure. Connect the actuator drive mechanism (key, coupling) to the valve stem, ensuring proper engagement and alignment to prevent binding or excessive stress on the stem. Set any required open/close stops on the actuator.
•
• Post-Installation Check:After tightening and actuator mounting (if any), fully cycle the valve (open and close) several times using the hand lever or actuator. Observe for smooth, unrestricted operation without binding or excessive friction. Check the flange joints carefully for any signs of leakage. Address any leaks immediately by re-checking bolt torque (following the tightening pattern), never by over-tightening a single bolt.
•

Optimizing the Performance of PTFE Butterfly Valve And Stainless Butterfly Valve

• Red Butterfly Valve:While the vibrant red butterfly valve coating often signifies epoxy for corrosion protection, its primary function is high visibility for easy identification in complex piping systems. Installation practices are standard, but ensure the coating isn't damaged during handling or tightening. The coating protects the underlying material (often ductile iron per ASTM A536) but doesn't change the mechanical installation requirements.

• PTFE Butterfly Valve:The PTFE butterfly valve relies on its PTFE seat (and often PTFE bushings) for superior chemical resistance, low friction, and excellent sealing capabilities, especially in clean services. Handle these valves carefully to avoid scratching the PTFE seat surface. Ensure the pipeline is exceptionally clean. Avoid over-torquing flange bolts, as excessive force can cold-flow or permanently deform the PTFE, compromising the seal. Follow manufacturer torque specs precisely.
•
• Stainless Butterfly Valve:The stainless butterfly valve (body and disc typically ASTM A351 CF8/CF8M - 304/316 equivalent) is chosen for corrosion resistance or hygiene. Use stainless steel bolts, nuts, and gaskets compatible with the valve material to prevent galvanic corrosion. Ensure the pipeline is clean, especially free of carbon steel particles which can embed in the stainless surface and cause rust staining or pitting. Handle with clean gloves to prevent contamination.
•

FAQs About Red Butterfly Valve Installation and Performance

What distinguishes a red butterfly valve from others, and does the color affect installation?

The primary distinction of a red butterfly valve is its highly visible red epoxy coating, applied for corrosion protection and easy identification in piping systems. The color itself does not alter the installation procedure. The underlying materials and specifications dictate the installation requirements, just like any unpainted, PTFE butterfly valve, or stainless butterfly valve.

Why choose a PTFE butterfly valve, and are there special handling needs?

A PTFE butterfly valve is selected for its exceptional chemical resistance, very low friction, wide temperature range suitability, and bubble-tight shut-off capabilities, particularly in clean media. Special handling involves protecting the soft PTFE seat surface from scratches during installation and ensuring pipelines are meticulously clean. Crucially, adhere strictly to the recommended flange bolt torque values to avoid crushing or deforming the PTFE seat, which is more sensitive to over-compression than elastomeric seats.

When is a stainless butterfly valve the necessary choice?

A stainless butterfly valve is essential when handling corrosive fluids, requiring high purity (e.g., food, beverage, pharmaceuticals), operating in marine environments, or needing higher temperature resistance than coated iron valves offer. The austenitic stainless steel construction (like CF8M / 316) provides inherent corrosion resistance. Installation requires using compatible stainless steel fasteners and gaskets and ensuring the system is free of contaminating particles like carbon steel grit.

How do maintenance needs differ between a red butterfly valve, PTFE butterfly valve, and stainless butterfly valve?

While all valves benefit from periodic operation checks and external inspection, the seat material significantly influences maintenance. A standard red butterfly valve with an elastomeric seat (like EPDM or NBR) may require more frequent seat replacement in harsh chemical or abrasive services compared to a PTFE butterfly valve, which boasts superior chemical and wear resistance. Stainless butterfly valve bodies require minimal maintenance beyond ensuring stem seals are intact, but the seat material (often PTFE or elastomer) dictates internal maintenance intervals similar to the other types. Stem lubrication intervals might vary based on bushing material (PTFE, nylon, bronze).

Can I specify different materials for the disc and seat within one valve, like a stainless butterfly valve disc with a PTFE seat?

Absolutely. Reputable manufacturers like Ningjin Hongda Valve Co., Ltd. specialize in providing personalized valve configurations. It's very common, and often recommended, to combine materials. For example, you can specify a stainless butterfly valve body and disc for corrosion resistance, paired with a PTFE butterfly valve seat for superior chemical resistance and sealing. Similarly, a red butterfly valve (epoxy-coated ductile iron body) could be fitted with a stainless steel disc and a PTFE seat. This customization allows optimizing the valve for specific pressure, temperature, corrosion, and media requirements. Refer to the material compatibility table provided earlier.

Correct installation is not merely a procedural step; it's a fundamental investment in the reliability, safety, and longevity of your piping system. Whether installing a highly visible red butterfly valve for easy identification, a chemically resilient PTFE butterfly valve for critical sealing, or a robust stainless butterfly valve for corrosive environments, adhering to meticulous pre-installation checks, precise alignment, controlled bolt tightening, and post-installation verification is critical. Ningjin Hongda Valve Co., Ltd., with its integrated design, specialized production capabilities, and global sales and service network, provides high-quality valves built to perform. By following these installation best practices and leveraging our ability to customize valve configurations – including specific combinations of body, disc, seat (like PTFE), and stem materials – you ensure that your butterfly valves, supplied in bulk for industrial applications worldwide, deliver optimal performance throughout their service life in demanding sectors like water treatment, power generation, petrochemicals, and beyond. Remember, taking the time to install correctly prevents costly downtime and repairs in the future.
