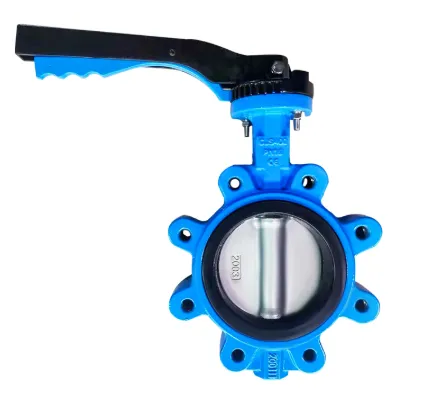

Advantages of Using Lug Valves in High-Pressure Water Applications

High-pressure water systems are the lifeblood of countless industries, from municipal water supply and wastewater treatment to power generation, fire protection, and industrial processing. Ensuring the reliability, safety, and efficiency of these critical systems demands robust and dependable valve solutions. Among the various valve types available, lug valves, particularly lug butterfly valves, stand out as exceptionally well-suited for these demanding environments. As a leading manufacturer, Ningjin Hongda Valve Co., Ltd., leverages its specialized production lines in casting, machining, and assembly, alongside its dedicated sales and service team, to produce high-performance valves precisely engineered for such challenges. Our extensive product range, including various lug type butterfly valve designs, is trusted globally across five continents, especially in key markets like Europe and America.

The fundamental design of a lug valve offers distinct benefits for high-pressure water applications. Unlike wafer-style valves that rely on line flanges for compression, a lug butterfly valve features threaded inserts (lugs) protruding from the valve body. These lugs allow the valve to be bolted directly between two flanges using separate sets of bolts for each flange connection. This inherent structural characteristic provides several key advantages.

Structural Integrity and Pressure Containment of Lug Butterfly Valves

The primary advantage of the lug type butterfly valve in high-pressure scenarios is its superior structural integrity. The lug design creates a more rigid connection to the pipeline. Each flange is independently bolted to the valve body through its own set of bolts in the lugs. This distributes the load more evenly and prevents the valve body itself from bearing the full compressive force required to seal the line flanges together, as happens with wafer valves. This independent bolting significantly enhances the valve's ability to withstand high internal pressures without distortion or leakage at the body-to-flange interface. Ningjin Hongda's commitment to quality is evident in the materials used for the valve body – options include high-grade gray cast iron (ASTM A126 CL.B, DIN GG25), ductile iron (ASTM A536 65-45-12, DIN GGG40), stainless steel (ASTM A351 CF8, CF8M), and carbon steel (ASTM A216 WCB) – all selected for their strength and pressure containment capabilities. The robust construction ensures the valve maintains its shape and sealing integrity even under the sustained stress of high-pressure water flow.

Operational Flexibility and Simplified Maintenance with Lug Type Butterfly Valves

The lug valve configuration offers unparalleled operational flexibility, especially crucial in complex water systems. Because each flange connection is independent, a lug butterfly valve can be installed or removed without needing to disassemble the entire pipeline section. This is particularly valuable for maintenance, inspection, or replacement tasks. Technicians can isolate a specific section by removing the valve without disturbing the adjacent pipe flanges or supports. This drastically reduces downtime and maintenance costs. Furthermore, the lug type butterfly valve design inherently allows for dead-end service on one side of the valve, provided the pressure rating is sufficient. This capability is beneficial in certain system configurations like pump discharge lines or bypass loops. Ningjin Hongda complements this mechanical flexibility with operational versatility. Our Series F170 lug butterfly valves are available with a range of operators to suit any application need: handles for smaller sizes (2" to 12"), manual gear operators for easier actuation on larger sizes (2" to 12"), and electric or pneumatic actuators (2" to 12") for automated process control. With numerous body and trim material combinations, we ensure the right valve is available for the specific pressure, temperature, and water quality conditions.

Material Durability and Sealing Performance for Lug Valves

High-pressure water is not just about force; it can involve turbulence, potential water hammer, and varying water chemistries. The materials used in critical components directly impact longevity and sealing reliability. Ningjin Hongda's lug valves feature carefully selected materials for each component:

• Discs:Constructed from ductile iron (nickel-plated for corrosion resistance), stainless steel (CF8, CF8M), or AL-Bronze, designed to handle high-velocity flow and resist erosion/corrosion.
• Stems:Made from zinc-plated steel or high-strength stainless steel (Type 316, 416, 420), ensuring smooth operation and resistance to bending or galling under torque.
• Seats:Offered in a variety of elastomers (NBR, EPDM, Neoprene, Viton) or PTFE, chosen based on temperature range, pressure, and chemical compatibility with the water being handled. The soft-seated design provides excellent bubble-tight shut-off even at high pressures.
• Seals:High-quality O-rings (NBR, EPDM, Viton) and bushings (PTFE, Nylon, Lubricated Bronze) ensure low friction, minimal wear, and long-term sealing integrity around the stem and within the body.

Product Parameters for Lug Butterfly Valves

This comprehensive material selection, combined with precision manufacturing on dedicated production lines, ensures that Ningjin Hongda's lug type butterfly valves deliver consistent, leak-free performance and extended service life in harsh, high-pressure water environments. All products can be personalized according to customer requirements to meet specific project needs.

FAQs about Lug Valves in Water Systems

What is the key installation advantage of a lug valve compared to a wafer valve?

The primary installation advantage of a lug valve is that it bolts directly to each pipeline flange with its own set of bolts. This allows for easier removal of the valve for maintenance or inspection without needing to disassemble the entire pipeline section connected to both flanges, which is necessary with a wafer valve. It also permits dead-end service on one side.

Can a lug butterfly valve reliably handle the pressures found in municipal water mains?

Yes, high-quality lug butterfly valves, like those manufactured by Ningjin Hongda with robust body materials (ductile iron, carbon steel, stainless steel) and precise engineering, are specifically designed and rated to handle the high pressures commonly encountered in municipal water supply networks, pump stations, and industrial water systems.

What seat material options are best for a lug type butterfly valve in potable water or wastewater service?

For potable water, EPDM seats are commonly used due to their excellent compliance with drinking water standards and good resilience. For wastewater applications involving potential abrasives or chemicals, harder materials like NBR or Viton (FKM) are often preferred for their enhanced chemical resistance and durability. PTFE offers excellent chemical resistance across a broad range. Ningjin Hongda offers all these options.

What types of operators are available for actuating large diameter lug butterfly valves?

Large diameter lug butterfly valves typically require gear operators for manageable manual actuation. Ningjin Hongda provides manual gear operators for sizes from 2" to 12". For automated control, electric actuators or pneumatic actuators (also available from 2" to 12") can be fitted to the lug type butterfly valve.

Can I get a lug valve customized for a specific high-pressure water application?

Absolutely. Ningjin Hongda Valve Co., Ltd. specializes in providing personalized valve solutions. We can customize aspects like body material (cast iron, ductile iron, steel, stainless steel), seat material (EPDM, NBR, Viton, PTFE), disc material (nickel-plated ductile iron, stainless steel, bronze), stem material, and operator type (lever, gear, actuator) on our lug valves to perfectly match the pressure, temperature, media, and operational requirements of your specific high-pressure water application.

In the demanding world of high-pressure water applications, selecting the right valve technology is paramount for system integrity, safety, and cost-effective operation. Lug valves, particularly lug butterfly valves, offer a compelling combination of structural strength, pressure containment, installation and maintenance flexibility, and reliable sealing performance. The inherent design of the lug type butterfly valve, with its independent bolting to pipeline flanges, provides superior resistance to high internal pressures and simplifies crucial maintenance procedures. Ningjin Hongda Valve Co., Ltd., as a professional manufacturer with integrated design, production, and service capabilities, leverages specialized casting, machining, and assembly lines to produce high-quality lug valves tailored for these rigorous environments. Utilizing robust materials like ductile iron, carbon steel, and stainless steel for critical components, and offering a wide range of elastomeric and polymeric seals and diverse operator options (handles, gears, actuators), Ningjin Hongda ensures its valves deliver dependable, long-lasting performance. Widely used across water supply, wastewater treatment, power generation, and industrial sectors globally, Ningjin Hongda's lug valves represent a reliable and efficient solution for managing high-pressure water flow. Our commitment to customization further ensures that specific project requirements are met, solidifying the lug valve's position as a preferred choice for engineers and operators worldwide.
