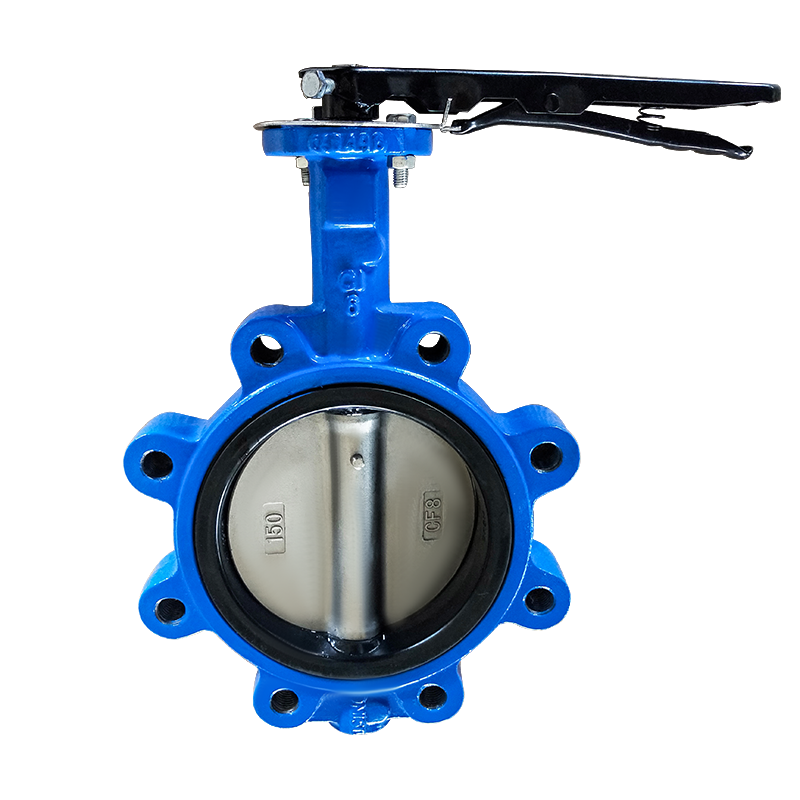

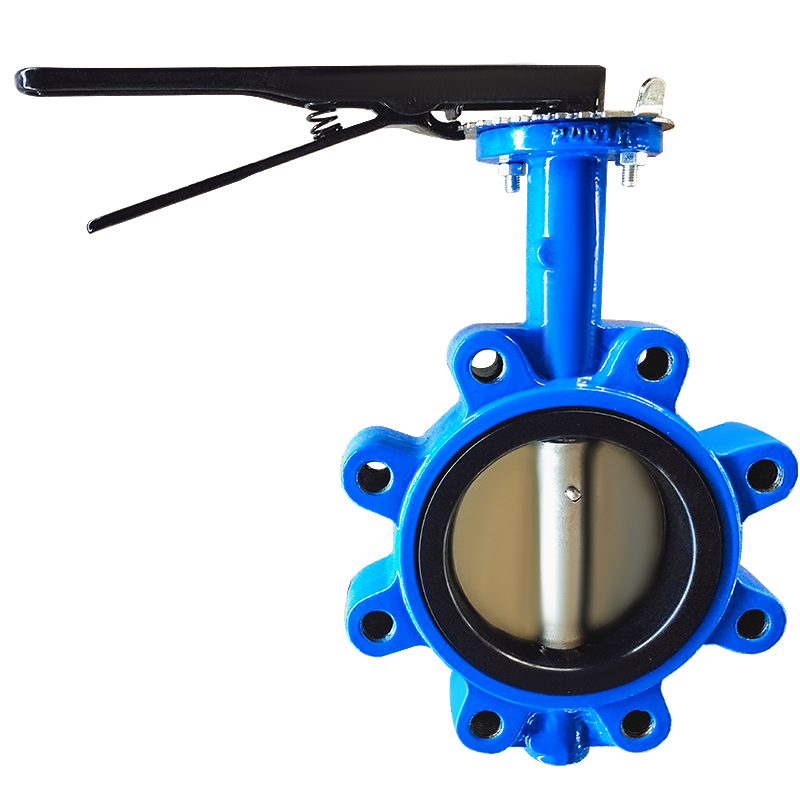

Series F101 Lug Type Butterfly Valve

Series F101 butterfly valves designed to comply with MSS SP-67, BS5155 and API 609.Compatible with GB, ANSI, DIN, BS, JIS flanges. Available in size 1½″ to 48″. Available in wafer type, lug type and U-section wafer type body.

CONTACT NOW down pdf

Details

Tags

Product Description

Available with handles (1½″ to 12″), manual gear operators (1½″ to 48″), and electric or pneumatic actuators (1½″ to 48″). With many body/trim combinations, there is a series F101 butterfly valve to meet your application.

Read More About lug type butterfly

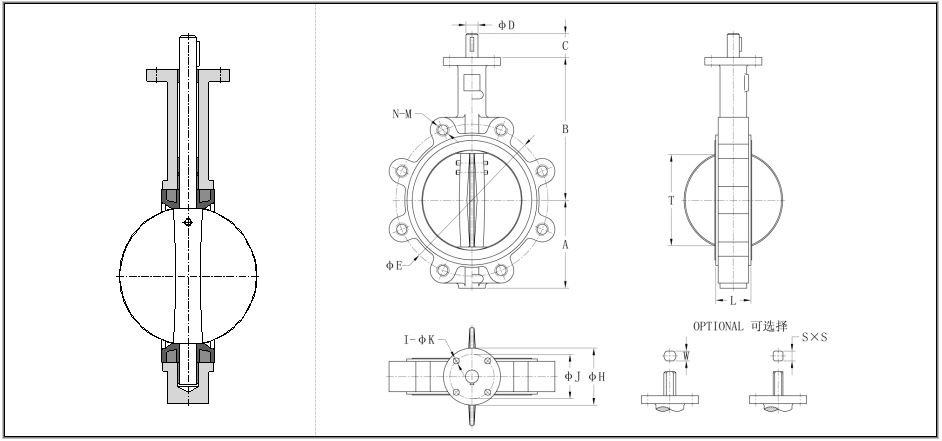

DIMENSIONS LIST

Size		A	B	C	D	E				N-M				H	J	I- K	L	T	S	W
mm	inch	A	B	C	D	ANSI 125/150	PN10	PN16	10K	ANSI 125/150	PN10	PN16	10K	H	J	I- K	L	T	S	W
40	1½	70	145	32	12.7	98.4	110	110	105	4--½″-12	4-M16	4-M16	4-M16	65	50	4-7	33	27	9	10
50	2	76	162	32	12.7	120.7	125	125	120	4-⅝″-11	4-M16	4-M16	4-M16	65	50	4-7	42	32	9	10
65	2½	89	174	32	12.7	139.7	145	145	140	4-⅝″-11	4-M16	4-M16	4-M16	65	50	4-7	45	47	9	10
80	3	95	181	32	12.7	152.4	160	160	150	4-⅝″-11	4-M16	8-M16	8-M16	65	50	4-7	45	65	9	10
100	4	114	200	32	15.9	190.5	180	180	175	8--⅝″-11	8-M16	8-M16	8-M16	90	70	4-9.5	52	90	11	12
125	5	127	213	32	19.1	215.9	210	210	210	8-¾″-10	8-M16	8-M16	8-M20	90	70	4-9.5	54	111	14	14
150	6	139	225	32	19.1	241.3	240	240	240	8-¾″-10	8-M20	8-M20	8-M20	90	70	4-9.5	56	145	14	14
200	8	177	260	38	22.2	298.5	295	295	290	8-¾″-10	8-M20	12-M20	12-M20	125	102	4-11.5	60	193	17	17
250	10	203	292	38	28.6	362	350	355	355	12-⅞″-9	12-M20	12-M24	12-M22	125	102	4-11.5	66	241	22	22
300	12	242	337	38	31.8	431.8	400	410	400	12-⅞″-9	12-M20	12-M24	16-M22	125	102	4-11.5	77	292	22	24
350	14	277	368	45	31.8	476.3	460	470	445	12-1″-8	16-M20	16-M24	16-M22	125	102	4-11.5	77	325	22	24
400	16	308	400	51	33.3	539.8	515	525	510	16-1″-8	16-M24	16-M27	16-M24	210	165	4-22	86	380	27	27
450	18	342	422	51	38.1	577.9	565	585	565	16-1⅛″-7	20-M24	20-M27	20-M24	210	165	4-22	105	428	27	27
500	20	374	479	64	41.3	635	620	650	620	20-1⅛″-7	20-M24	20-M30	20-M24	210	165	4-22	130	474	27	32
600	24	459	562	70	50.8	749.3	725	770	730	20-1¼″-7	20-M27	20-M33	24-M30	210	165	4-22	152	575	36	36
700	28	520	624	72	55	863.6	840	840	840	28-1¼″-7	24-M27	24-M33	24-M30	300	254	8-18	165	674	—	—
750	30	545	650	72	55	914.4	900	900	900	28-1¼″-7	24-M30	24-M33	24-M30	300	254	8-18	167	726	—	—
800	32	575	672	72	55	977.9	950	950	950	28-1½″-6	24-M30	24-M36	28-M30	300	254	8-18	190	771	—	—
900	36	635	768	77	75	1085.9	1050	1050	1050	32-1½″-6	28-M30	28-M36	28-M30	300	254	8-18	207	839	—	—
1000	40	685	823	85	85	1200.2	1160	1170	1160	36-1½″-6	28-M33	28-M39	28-M36	300	254	8-18	216	939	—	—
1050	42	765	860	85	85	1257.3	—	—	—	36-1½″-6	—	—	—	300	254	8-18	254	997	—	—
1100	44	765	860	85	85	1314.5	1270	1270	1270	40-1½″-6	32-M33	32-M39	28-M36	300	254	8-18	254	997	—	—
1200	48	839	940	150	92	1422.4	1380	1390	1380	44-1½″-6	32-M36	32-M45	32-M36	350	298	8-22	276	1125	—	—

Introducing our Lug Style Butterfly Valve, a high performance solution for flow control in a variety of industrial applications. This innovative valve is designed to provide reliable, efficient operation with a focus on durability and ease of maintenance.

Lug-style butterfly valves are constructed from high-quality materials to ensure long-lasting performance even under demanding conditions. The valve features a sturdy lug design for secure installation and superior support for the pipe. Additionally, the valve is equipped with a precision-engineered disc that ensures smooth and efficient flow control.
This valve is ideal for a variety of applications including water treatment, HVAC systems, chemical processing, and more. Its versatile design and excellent performance make it ideal for use in various industrial sectors.

One of the main advantages of lug-style butterfly valves is their ease of maintenance. The valve is designed for quick and easy disassembly, providing easy access to internal components for inspection, cleaning and repair. This reduces downtime and ensures the valve is back in service quickly.

In addition, lug-style butterfly valves are available in a variety of sizes and pressure ratings to meet the specific requirements of different applications. It is also compatible with a variety of drive options, including manual, electric and pneumatic actuators, providing operational and control flexibility.

In summary, lug-style butterfly valves are a reliable and efficient solution for flow control in industrial applications. Its rugged construction, easy maintenance and versatile design make it a valuable addition to any fluid handling system. With this valve, customers can expect superior performance, long service life and minimal operating and maintenance hassles.

MATERIALS LIST

Item	Part Name	Materials
1	Body	Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200; Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; Carbon Steel: ASTM A216 WCB
2	Stem	Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416;
3	Taper Pin	Stainless Steel: ASTM A276 Type 304, Type 316; EN 1.4501;
4	Seat	NBR, EPDM, Neoprene, PTFE, Viton;
5	Disc	Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501; AL-Bronze: ASTM B148 C95400;
6	O-Ring	NBR, EPDM, Neoprene, Viton;
7	Bushing	PTFE, Nylon, Lubricated Bronze;
8	Key	Carbon Steel

This buyer can select material as per materials list. The customer may mark the material and temperature used, Our company may select instead. When the medium and temperature is special, please consult with our company.

SEAT TEMPERATURE RATINGS

Material		NBR	Neoprene	EPDM	Hypalon	Viton	PTFE
Temperature Ratings	℃	-20~100	-40~100	-40~120	-32~135	-12~230	-50~200
Temperature Ratings	℉	-4~212	-40~212	-40~248	-25.6~275	10.4~446	-58~392

Seat materials are capable of withstanding lower temperatures without damage. However, the elastomer becomes hard and torques increase. Some flow media may further restrict the published temperature limits or significantly reduce seat life.
