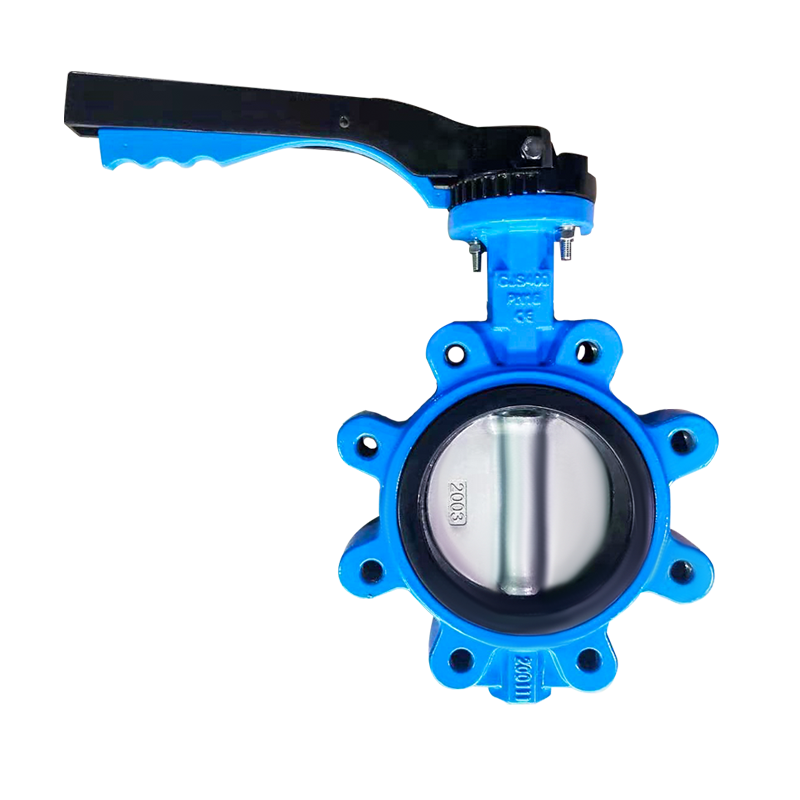

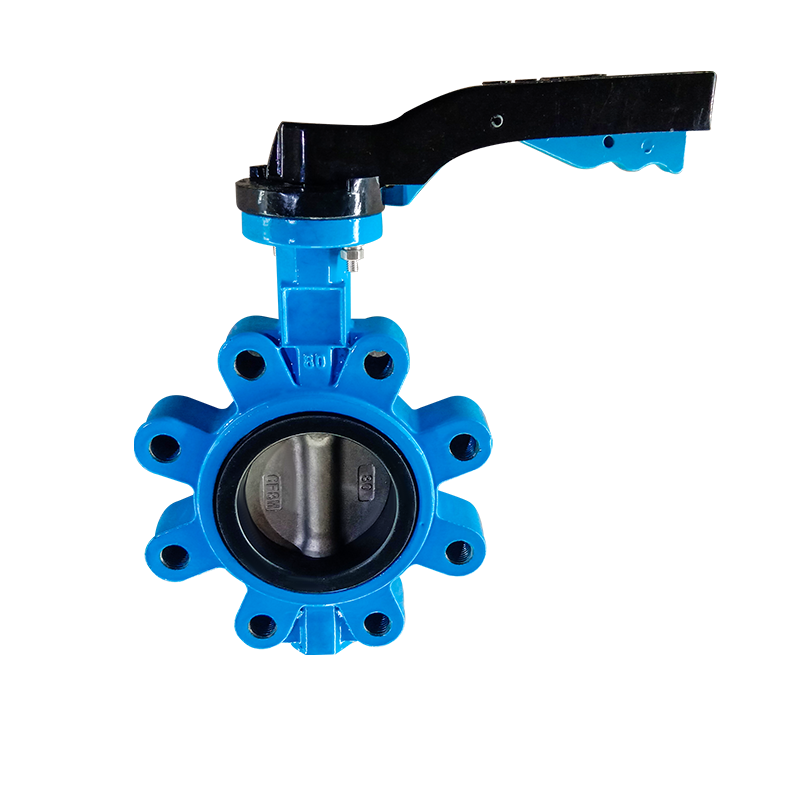

LUG TYPE BUTTERFLY VALVE

Available with handles (2″ to 12″), manual gear operators (2″ to 12″), and electric or pneumatic actuators (2″ to 12″). With many body/trim combinations, there is a series F170 butterfly valve to meet your application.

CONTACT NOW down pdf

Details

Tags

MATERIALS LIST

Item	Part Name	Materials
1	Body	Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200; Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; Carbon Steel: ASTM A216 WCB
2	Stem	Zinc Plated Steel; Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416;
3	Thrust Washer	Carbon steel
4	Screw	Carbon steel; Stainless Steel
5	Seat	NBR, EPDM, Neoprene, PTFE, Viton;
6	Disc	Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501; AL-Bronze: ASTM B148 C95400;
7	O-Ring	NBR, EPDM, Neoprene, Viton;
8	Bushing	PTFE, Nylon, Lubricated Bronze;

This buyer can select material as per materials list. The customer may mark the material and temperature used, Our company may select instead. When the medium and temperature is special, please consult with our company.

Read More About lugged type butterfly valve

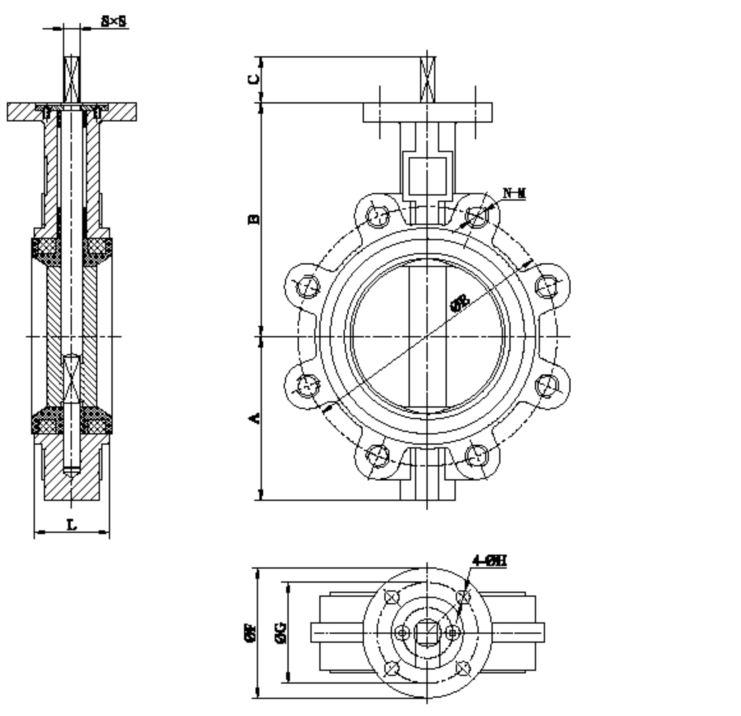

DIMENSIONS LIST

Size		A	B	C	E				N-M				F	G	H	L	S
mm	inch	A	B	C	ANSI 125/150	PN10	PN16	10K	ANSI 125/150	PN10	PN16	10K	F	G	H	L	S
40	1½	70	145	32	98.4	110	110	105	4--½″-12	4-M16	4-M16	4-M16	65	50	4-7	33	9
50	2	76	162	32	120.7	125	125	120	4-⅝″-11	4-M16	4-M16	4-M16	65	50	4-7	42	9
65	2½	89	174	32	139.7	145	145	140	4-⅝″-11	4-M16	4-M16	4-M16	65	50	4-7	45	9
80	3	95	181	32	152.4	160	160	150	4-⅝″-11	4-M16	8-M16	8-M16	65	50	4-7	45	9
100	4	114	200	32	190.5	180	180	175	8--⅝″-11	8-M16	8-M16	8-M16	90	70	4-9.5	52	11
125	5	127	213	32	215.9	210	210	210	8-¾″-10	8-M16	8-M16	8-M20	90	70	4-9.5	54	14
150	6	139	225	32	241.3	240	240	240	8-¾″-10	8-M20	8-M20	8-M20	90	70	4-9.5	56	14
200	8	177	260	38	298.5	295	295	290	8-¾″-10	8-M20	12-M20	12-M20	125	102	4-11.5	60	17
250	10	203	292	38	362	350	355	355	12-⅞″-9	12-M20	12-M24	12-M22	125	102	4-11.5	66	22
300	12	242	337	38	431.8	400	410	400	12-⅞″-9	12-M20	12-M24	16-M22	125	102	4-11.5	77	22

SEAT TEMPERATURE RATINGS

Material		NBR	Neoprene	EPDM	Hypalon	Viton	PTFE
Temperature Ratings	℃	-20~100	-40~100	-40~120	-32~135	-12~230	-50~200
Temperature Ratings	℉	-4~212	-40~212	-40~248	-25.6~275	10.4~446	-58~392

Seat materials are capable of withstanding lower temperatures without damage. However, the elastomer becomes hard and torques increase. Some flow media may further restrict the published temperature limits or significantly reduce seat life.

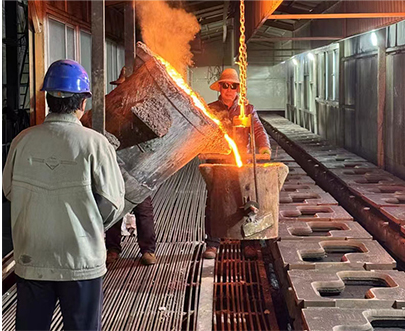

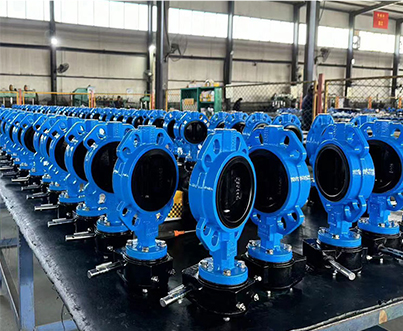

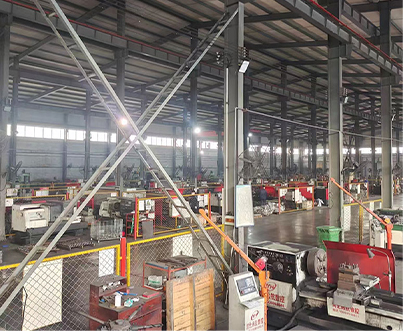

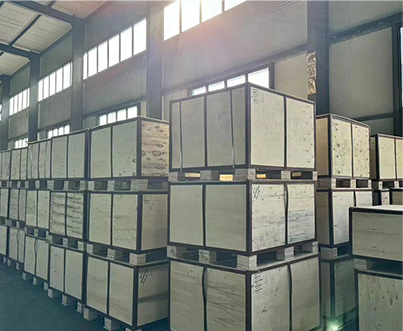

factory show
