THREADED BUTTERFLY VALVE

Threaded butterfly valves are carefully sized to ensure a perfect fit and smooth operation. Our valves are available in a variety of sizes and pressure ratings to suit a variety of systems and operations. Whether you need a small valve for a low pressure application or a large valve for a high pressure system, we have the perfect solution for you.

CONTACT NOW down pdf

Details

Tags

Product Description

Our threaded butterfly valves are designed for easy installation and maintenance. Threaded connections allow for quick and easy installation, while the valve design makes it easy to clean and inspect. In the long term, this means less downtime for your operations and lower maintenance costs.

In addition to their practical design, our threaded butterfly valves also have a stylish and compact appearance. It is designed to save space and provide a streamlined solution to your plumbing needs. With its corrosion-resistant surface treatment, this valve will continue to look and perform like new for years to come.

Read More About threaded check valve

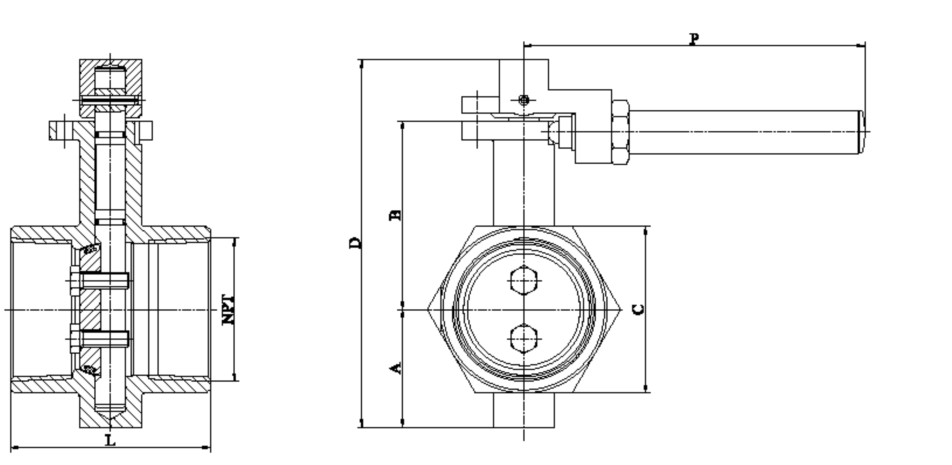

DIMENSIONS LIST

Size	A	B	C	D	L	P	NPT
2	57	85	76.2	180	108	211	NPT 2-11.5
3	73	117	103.1	228	123.7	211	NPT 3-8
4	94	123	134.9	255	130	211	NPT 4-8
6	125	190	196.9	365	177.8	331	NPT 6-8

MATERIALS LIST

Item	Part Name	Materials
1	Body	Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200; Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10;
2	Stem	Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416;
5	Disc	Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; AL-Bronze: ASTM B148 C95400;
6	O-Ring	NBR, EPDM, Neoprene, Viton;
