Series F16 Dual Plate Wafer Type Check Valve

Ji bo lihevhatina bi API 594-ê re hatî sêwirandin. Pejirandina sêwirana plakaya dualî ji bo morkirina bikêrhatî. Kontrolkirin û ceribandina valve bi API 598 re tevdigerin. Di Series F16 û Series F125 de peyda dibe. Valveya kontrolê ya Series F16 bi flangesên GB, DIN, BS re hevaheng e. Rû bi rû li gorî ISO 5752 rêzika bingehîn 16 (wafer dirêj).

TÊKILIYA NIHA down pdf

Details

Tags

LÎSTEYA MATERIALE

Şanî	Navê Part	Materials
1	Beden	Cast Iron: ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200; Castil Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10;
2	Washer	PTFE, Naylon
3	Disc	Castil Iron (Nîklê hatiye çekirin): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10; Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501; AL-Tûnc: ASTM B148 C95400;
4	Rûniştek	NBR, EPDM, Neoprene, Viton;
5	Bihar	Stainless Steel: ASTM A276 Type 304, Type 316, Type 410;
6	Qam	Stainless Steel: ASTM A276 Type 304, Type 316, Type 410;
7	Seal Washer	NBR, EPDM, Neoprene, Viton;
8	Badan	Carbon Steel；Stainless Steel: ASTM A276 Type 316, Type 410;

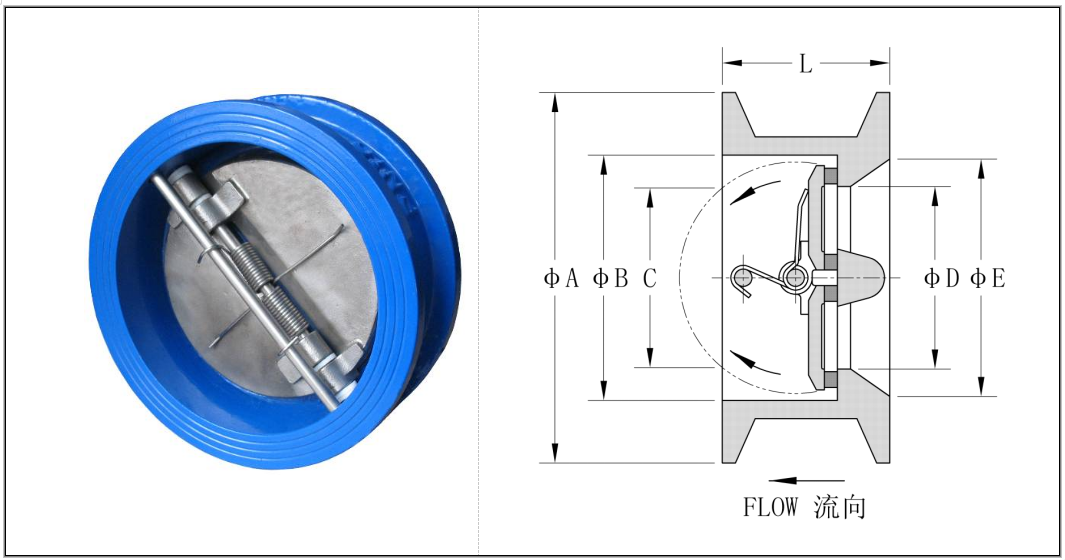

Read More About wafer style check valve

LÎSTEYA DIMENSIONS

Mezinayî		A	B	C	D	E	L
mm	inch	A	B	C	D	E	L
50	2	107	65	49	48	59	43
65	2.5	127	80	63	60	78	46
80	3	142	94	69	70	91	64
100	4	162	117	97	88	110	64
125	5	192	145	121	115	142	70
150	6	218	170	145	134	170	76
200	8	273	224	197	182	222	89
250	10	328	265	234	223	264	114
300	12	378	310	284	260	310	114
350	14	438	360	333	300	360	127
400	16	489	410	379	355	414	140
450	18	539	450	415	382	450	152
500	20	594	505	472	435	505	152
600	24	695	624	579	536	605	178
700	28	798	725	673	630	715	229
800	32	906	825	775	720	815	241
900	36	1004	925	877	820	915	241
1000	40	1116	1025	969	912	1015	300
1200	48	1332	1228	1161	1100	1220	350
