Kurt stûyê Lug Type Model 20 Valve Butterfly

Bedenên yek perçeyî têne rijandin da ku hêza bilind û giraniya hindiktirîn misoger bikin.





down pdf

Details

Tags

LÎSTEYA MATERIALE

Şanî

Navê Part

Materials

1

Beden

Cast Iron: ASTM A126CL. B , Hesinê Kaxez: ASTM A536 65-45-12,

2

Stûna jorîn

Zinc Plated Steel;

Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416;

3

Rûniştek

NBR, EPDM, Neoprene, PTFE, Viton;

4

Spring Pin

Karbon Steel; Tev stîl

5

Lower Stem

Zinc Plated Steel;

Stainless Steel: ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416;

6

Disc

Castile Iron (Nîklê lêkirî an Naylon pêçandî):

ASTM A536 65-45-12,

Stainless Steel: ASTM A351 CF8, CF8M; CF3, CF3M; EN 1.4408, 1.4469; 1.4501;

AL-Tûnc: ASTM B148 C95400;

7

O-Ring

NBR, EPDM, Neoprene, Viton;

8

Bushing

PTFE, Naylon, Bronzê lubricated;

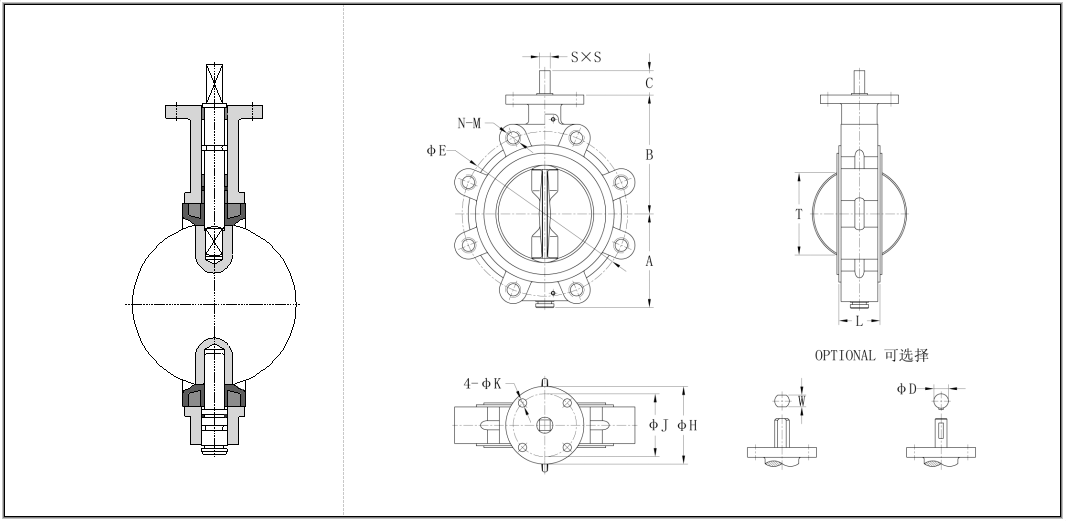

Read More About lug type butterfly



LÎSTEYA DIMENSIONS

LÎSTEYA BIMÎNAN (ÎNÇ)

Mezinayî

A

B

C

D

E

M

H

J

K

L

S

T

W

2

3

315/16

11/32

1/2

43/4

5/8-11

4

31/4

7/16

121/32

5/8

11/4

3/8

21/2

311/32

419/32

11/32

1/2

51/2

5/8-11

4

31/4

7/16

13/4

5/8

155/64

3/8

3

321/32

429/32

11/32

1/2

6

5/8-11

4

31/4

7/16

125/32

5/8

29/16

3/8

4

49/32

6

19/32

5/8

71/2

5/8-11

4

31/4

7/16

23/64

5/8

335/64

7/16

5

427/32

61/8

19/32

3/4

81/2

3/4-10

4

31/4

7/16

21/8

5/8

43/8

1/2

6

511/32

611/16

19/32

3/4

91/2

3/4-10

4

31/4

7/16

23/16

5/8

545/64

1/2

8

617/32

97/16

19/32

7/8

113/4

3/4-10

6

5

9/16

23/8

7/8

719/32

5/8

10

727/32

117/32

19/32

11/8

141/4

7/8-9

6

5

9/16

237/64

7/8

931/64

5/8

12

93/8

1113/16

19/32

11/4

17

7/8-9

6

5

9/16

31/32

11/8

111/2

3/4



LÎSTEYA BINGEHÊN (MM)

Mezinayî

A

B

C

D

E

M

H

J

K

L

S

T

W

50

76

100

26.2

12.7

120.7

5/8-11

101.6

82.6

11.1

42

15.9

32

9.5

65

85

117

26.2

12.7

139.7

5/8-11

101.6

82.6

11.1

45

15.9

47

9.5

80

93

125

26.2

12.7

152.4

5/8-11

101.6

82.6

11.1

45

15.9

65

9.5

100

109

152

32.5

15.9

190.5

5/8-11

101.6

82.6

11.1

52

15.9

90

11.1

125

123

156

32.5

19.1

215.9

3/4-10

101.6

82.6

11.1

54

15.9

111

12.7

150

136

170

32.5

19.1

241.3

3/4-10

101.6

82.6

11.1

56

15.9

145

12.7

200

166

240

32.5

22.2

298.5

3/4-10

152.4

127

14.3

60

22.2

193

15.9

250

199

285

32.5

28.6

362

7/8-9

152.4

127

14.3

66

22.2

241

15.9

300

238

300

32.5

31.8

431.8

7/8-9

152.4

127

14.3

77

28.6

292

19.1
